  1. (School of Electrical, Electronics and Communication Engineering, Koreatech / 1600, Chungjeol-ro, Byeongcheon-myeon, Dongnam-gu, Cheonan-si, Chungcheongnam-do, 31253, Korea innosm@koreatech.ac.kr )
  2. ( School of Electrical Engineering, Korea University / Engijneering Building #412, College of Engineering, 145 Anam-ro, Seongbuk-gu, Seoul, 02841, Korea {dltjddml97, jokim}@korea.ac.kr )



Image denoising, DNN-based, Texture-adaptive denoising, Texture segmentation, Perceptual image quality

1. Introduction

Image denoising is an old but active research topic. It is essential because noise is added to an image in various delivery paths, such as capturing, compressing, and presenting a photograph [1]. In recent years, researchers have reported the remarkable performance of denoising an image leveraged by deep neural networks (DNN) [2-5]. In quantitative scores, such as PSNR or SSIM, DNN-based denoising methods outperforms widely used conventional bilateral filter-based [6] or wavelet domain denoising [7,8] methods. On the other hand, DNN-based denoising methods are still limited in practical use in a few aspects.

First, it is difficult to control the denoising strength of an image. Each DNN-based method optimizes network parameters to minimize the designed loss of a particular type. In training, the mean square error or absolute error is a metric commonly used to calculate loss [9,10]. Reducing the score, however, does not guarantee a perceptually better image, even if the resulting image improves in terms of noise. As a result, those methods typically suffer from the loss of high-frequency details, such as edges and textures, to achieve high PSNR scores [11], and produce overly smooth images, as illustrated in Fig. 1. This can be a serious problem, particularly when used by television manufacturers to enhance the picture quality, as sharp detail cannot be sacrificed for noise removal.

Second, DNN-based methods are intensive and require large datasets for generalization performance. The prosperity of the examples and the heavy computation power make it possible to generate images that are numerically closer to the correct answer. Nevertheless, they are still subjectively insufficient. This explains why these methods are not actively applied in practice.

This paper proposes a method to denoise an image using region segmentation, prioritizing the subjective image quality after denoising. The proposed network partitions the image into flat and texture regions and denoises them adaptively. Assuming that noise in an image is a type of additive Gaussian, the texture region is composed of high-frequency components, and it is difficult to distinguish between true noise and texture. This region is mostly over-smoothed in existing DNN methods. On the other hand, the flat region is where the noise removal effect can be easily recognized. The proposed architecture learns a texture map prepared in advance for the loss function in the learning process and performs denoising by adjusting noise depending on the flat and texture regions. Therefore, the noise in the two regions is treated independently so that they do not affect each other. This way, minimal noise suppression can be applied in the texture region while maximizing noise removal in the background.

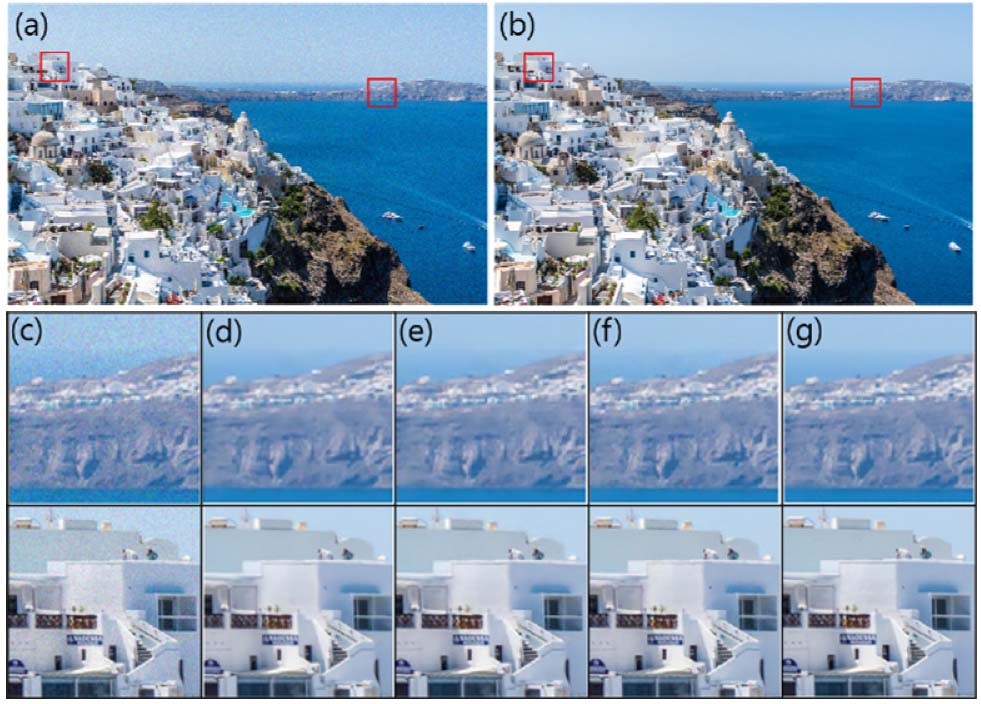

Fig. 1. (a) Noisy image; (b) Clean image; (c) Enlarged view of the red boxes in (a); (d) DnCNN results; (e) RedNet30 results; (f) The proposed results; (g) Enlarged view of the ground truth in (b). Whereas existing DNN-based denoising methods over-smooth edges and textures, the proposed method removes noises in flat region as in the second row of (d)-(f), and preserves high frequency details in the first row of (d)-(f).
../../Resources/ieie/IEIESPC.2022.11.6.412/fig1.png

2. Related Work

Researchers have proposed various denoising methods for image enhancement. Traditional methods include a bilateral filter [6] and wavelet image denoising [7]. A bilateral filter utilizes the intensity and distance of nearby pixels to preserve the edges of an image. Wavelet image denoising takes advantage of the sparse representation of an image and denoises it by localizing features in the image to different scales while preserving important features. The total variation exploits the image statistics [12] and dictionary-based methods learn sparse features from clean images [13]. BM3D [14] and NLM [15] find similar patches in an image and group them into 3D blocks to extract the finest shared details.

Various types of convolutional neural networks adopted from image classification and localization have shown excellent performance in image denoising. DnCNN [16] is a milestone in denoising with performance improvements through residual learning. Autoencoder [17] or UNet-based methods [18,19] are also competitive structures in denoising. As deep neural networks have proven effective in solving more than one problem simultaneously [20], some researchers have applied DNNs to comprehensively improve image quality, such as noise and resolution [21] or noise and dynamic range [22].

This study focused on the subjective image quality of the denoised image, which was not considered important previously. By contrast, the denoised images of existing methods are over-smoothed, especially in high-frequency regions. The proposed architecture is designed to adjust the denoising level depending on the texture-ness of an image, which is also learned during training. Therefore, denoising is applied to the maximum for flat regions, such as backgrounds and objects with only low-frequency components. For the texture regions with high-frequency objects, denoising is applied selectively to avoid losing sharp details for visual perceptual quality. The proposed scheme is an essential technology for camera and imaging software and TV manufacturers that must deliver clear and rich details.

3. The Proposed Scheme

In the initial experiment, a texture map was applied to the loss function to observe the performance of the texture segmentation. A lightweight neural network is preferred assuming limited memory and GPU resources. The proposed architecture adopts the DnCNN [16] as a base network and utilizes only six layers with 16 channels per layer from the original DnCNN for texture segmentation, as illustrated in Fig. 2. The middle three layers have batch normalizations and ReLU activations. The features from the first convolution layer are concatenated with the output of the fourth layer to facilitate the back-propagation of the gradients.

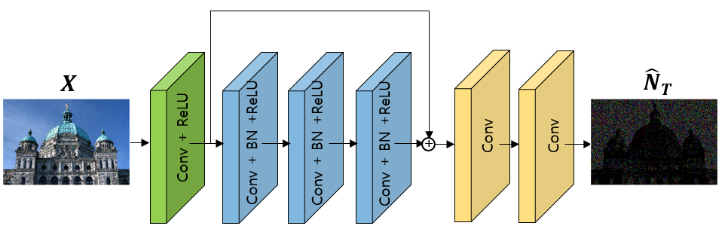

Fig. 2. The proposed architecture for texture segmentation.
../../Resources/ieie/IEIESPC.2022.11.6.412/fig2.png

3.1 Texture Map Generation

Using residual learning [6], which has proven to be effective, particularly in image denoising, the proposed system learns whether the region is a texture in training. It automatically determines the denoising area in the inference process. This was accomplished by generating a texture map for each database image and multiplying the residual noise by the texture map to obtain a weak-texture noise image, as illustrated in Fig. 3. The existing map-based denoising methods have a dedicated sub-branch network for the weight map, whereas the proposed network does not have an additional branch for the map extraction. This study utilized the weak-texture noise image in the loss function so that the network learns that there is no or less noise in the texture areas. As a result, high-frequency component regions, such as the texture and edge, were preserved, while weak textures were denoised in the proposed system. The proposed network estimates the weak-texture noises $\hat{\boldsymbol{N}}_{\boldsymbol{T}}$ at the network output by solving the following problem:

(1)
$ \underset{\hat{\boldsymbol{N}}_{\boldsymbol{T}}}{\text{argmin}}\left\| \hat{\boldsymbol{N}}_{\boldsymbol{T}}-\boldsymbol{N}_{\boldsymbol{T}}\right\| ^{2} \\ $
(2)
$ \boldsymbol{N}_{\boldsymbol{T}}=\boldsymbol{N}\odot \boldsymbol{T},\,\,\,\,\boldsymbol{X}=\boldsymbol{Y}+\boldsymbol{N} $

where $\boldsymbol{N}_{\boldsymbol{T}}$ is the ground truth weak-texture noise image calculated from the pixel-wise multiplication $(\odot )$ of the noise $\boldsymbol{N}$ and the weak-texture map $\boldsymbol{T}$. $\boldsymbol{X}$ and $\boldsymbol{Y}$ are the noisy and clean image, respectively.

The weak-texture map $\boldsymbol{T}$ serves to guide the regions to be denoised to the proposal network. The denoised region includes areas with flat and low-frequency components, such as the background behind the building in Fig. 3. The skeleton of the building and fine details, such as the pattern on a wall, should be excluded. In the present study, a 3$\times $3 Sobel edge detection was applied to a ground truth gray image first. Then, the resulting image was thresholded and inverted from the normalization to obtain a weak-texture noise map $\boldsymbol{T}$ as the follows:

(3)
$ \boldsymbol{T}=1-\left(\min \left(\mathbf{\mathcal{D}}\left(\boldsymbol{Y}_{gray}\right),\,\,k\right)/k\right) $

where $\mathbf{\mathcal{D}}\left(\odot \right)$ represents the bidirectional Sobel operator. $\boldsymbol{Y}_{gray}$ and k are the ground truth gray image and the threshold for the maximum response, respectively. $\boldsymbol{T}$ depends on k in Eq. (3). A higher k means that the denoised region becomes smaller; 0.2 for k was selected empirically for the entire study. Fig. 4 shows the examples of pairs of the ground truth image Y and the corresponding weak-texture map T from the DIV2K dataset [24]. In T in Fig. 4, the dark areas identified as texture, such as grass and patterns of clothes, are not denoised but retain their detail. In contrast, the bright areas in T of Fig. 4 are classified as flat or weak textures and are learned to remove noise.

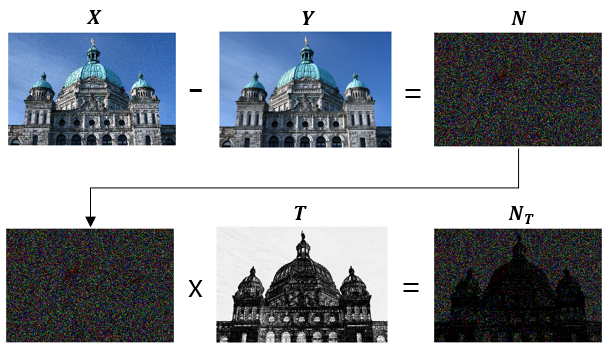

Fig. 3. Weak-texture noise map generation to preserve texture details of an image.
../../Resources/ieie/IEIESPC.2022.11.6.412/fig3.png

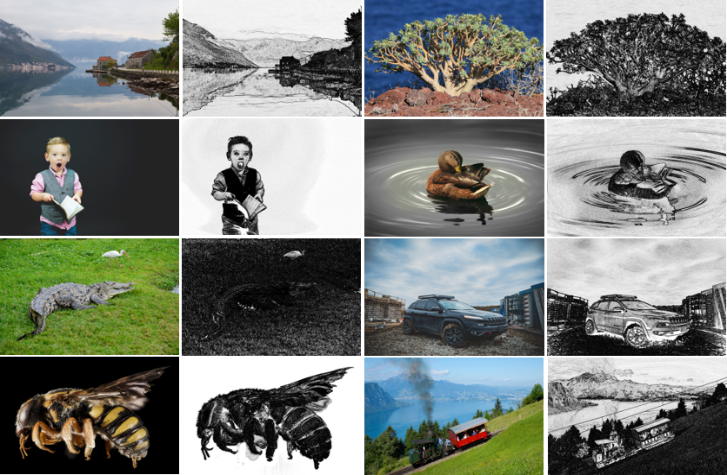

Fig. 4. Examples of a pair of cleans and weak-texture maps from DIV2K dataset.
../../Resources/ieie/IEIESPC.2022.11.6.412/fig4.png

3.2 Performance of Weak Texture Segmentation

The DIV2K [24] datasets were utilized qualitatively and quantitatively to compare the performance of the proposed method with existing methods. The DIV2K dataset consisted of 900 high-quality images divided into 800 training sets and 100 validation sets. Experiments with a large sigma, i.e., ${\sigma}$ = 50, were excluded because as a system maker that delivers the final products, such heave noise is unrealistic. In the analysis of the TV footage also gathered, the noise level of the actual broadcasted video was equivalent to the sigma 8-10 of Gaussian noise at most.

The proposed method does not explicitly perform region segmentation for noise removal inside the network and learns the target denoising region through the designed loss function. Therefore, the performance of the weak-texture map segmentation is difficult to verify with a test image. On the other hand, it can be achieved indirectly by comparing the original DnCNN $\hat{\boldsymbol{Y}}_{\boldsymbol{R}}$ and the proposed texture-preserved denoised result $\hat{\boldsymbol{Y}}$. The weak-texture maps in Fig. 4 notify the network how much denoising is performed by the intensity of $\boldsymbol{T}$. The brightest backgrounds in $\boldsymbol{T}$ of Fig. 4 are the areas that need to be denoised with the same intensity as the DnCNN. The residual image between $\hat{Y}_{R}$ and $\hat{Y}$ can show how well the proposed method protects the textured area in test images. Fig. 5 represents the test and the corresponding residual images generated as follows:

(4)
$ I_{d}=\min \left(\left(\hat{\boldsymbol{Y}}_{\boldsymbol{R}}-\hat{\boldsymbol{Y}}\right)^{2},0.001\right) $

The proposed network correctly identifies weak-texture regions because no significant pixel differences were found in the images. In the first column image of Fig. 5, the red pillars surrounded by pointed branches are flat regions that require denoising and are properly segmented.

Another way to evaluate the performance of the segmentation is to gradually increase the amount of noise assumed in the textured region. If the proposed method segments flat and textured regions correctly, then the flat regions are unaffected by these variations, and more noise is observed only in the texture regions. For this, $\boldsymbol{N}_{\boldsymbol{T}}~ $was modified slightly to $\boldsymbol{N}_{\boldsymbol{TF}}~ $in Eq. (1) as follows:

(5)
$ \boldsymbol{N}_{\boldsymbol{TF}}=\boldsymbol{N}_{\boldsymbol{T}}+\boldsymbol{N}_{\boldsymbol{F}}\\ \boldsymbol{N}_{\boldsymbol{F}}=c\boldsymbol{N}\odot \left(1-\boldsymbol{T}\right) $

where c is the parameter that controls the noise level in the texture region between 0 and 1. If c = 0, it means that there is no noise in the texture region and if c = 1, the noise is distributed evenly over the entire image and converges to DnCNN.

Fig. 6 illustrates the denoising results with respect to c in the test images. The proposed method appears to distinguish flat and texture regions correctly. In the first two rows of Fig. 6, the uniformly colored backgrounds in (b)-(d) have no noticeable changes as c increases, while noise is not observed regardless of c. The denoising level of the texture regions in (b)-(d) varies with c. As c increases, the processed images become closer to DnCNN. In the third and fourth row images of Fig. 6 with no apparent flat regions, DnCNN over-smooths subtle texture, resulting in blurry images. The proposed method suppresses noise in the flat region, as in the first two rows of Fig. 6, while it simultaneously controls the level of denoising in the texture region that is easy to smooth, as shown in the last two rows of Fig. 6.

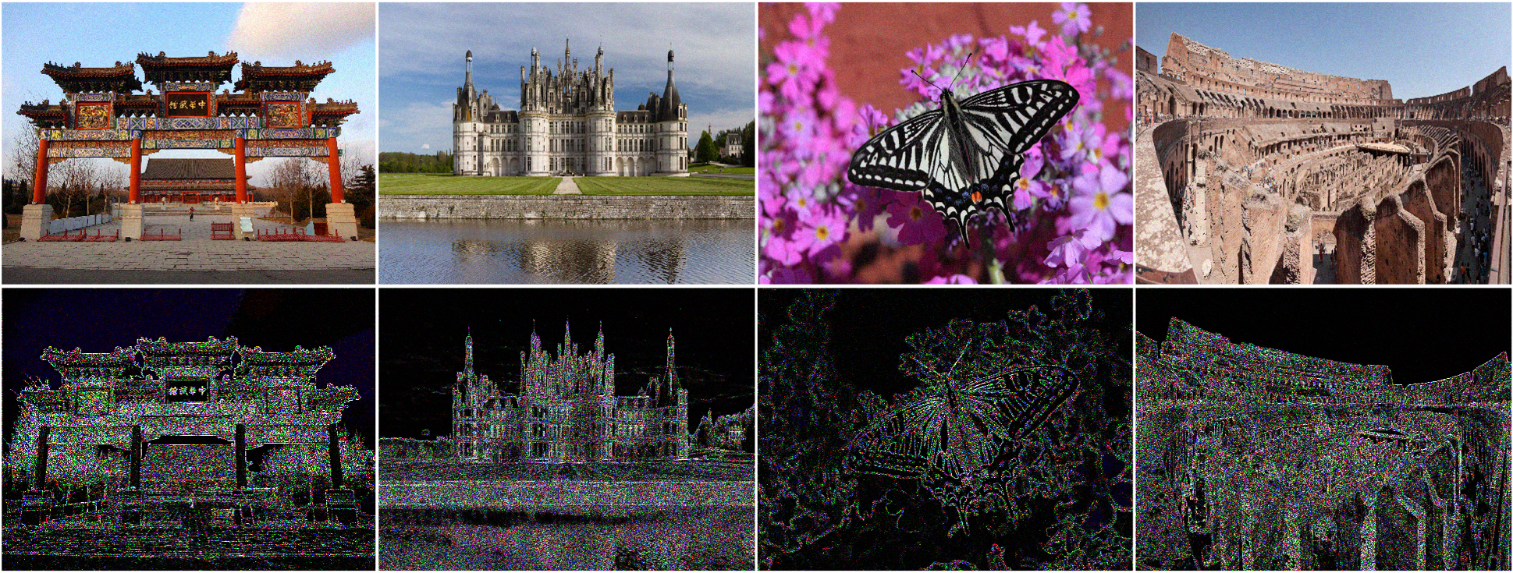

Fig. 5. Residual images between original DnCNN and proposed method. The dark areas represent the denoised regions in the proposed method with the same intensity as DnCNN.
../../Resources/ieie/IEIESPC.2022.11.6.412/fig5.png

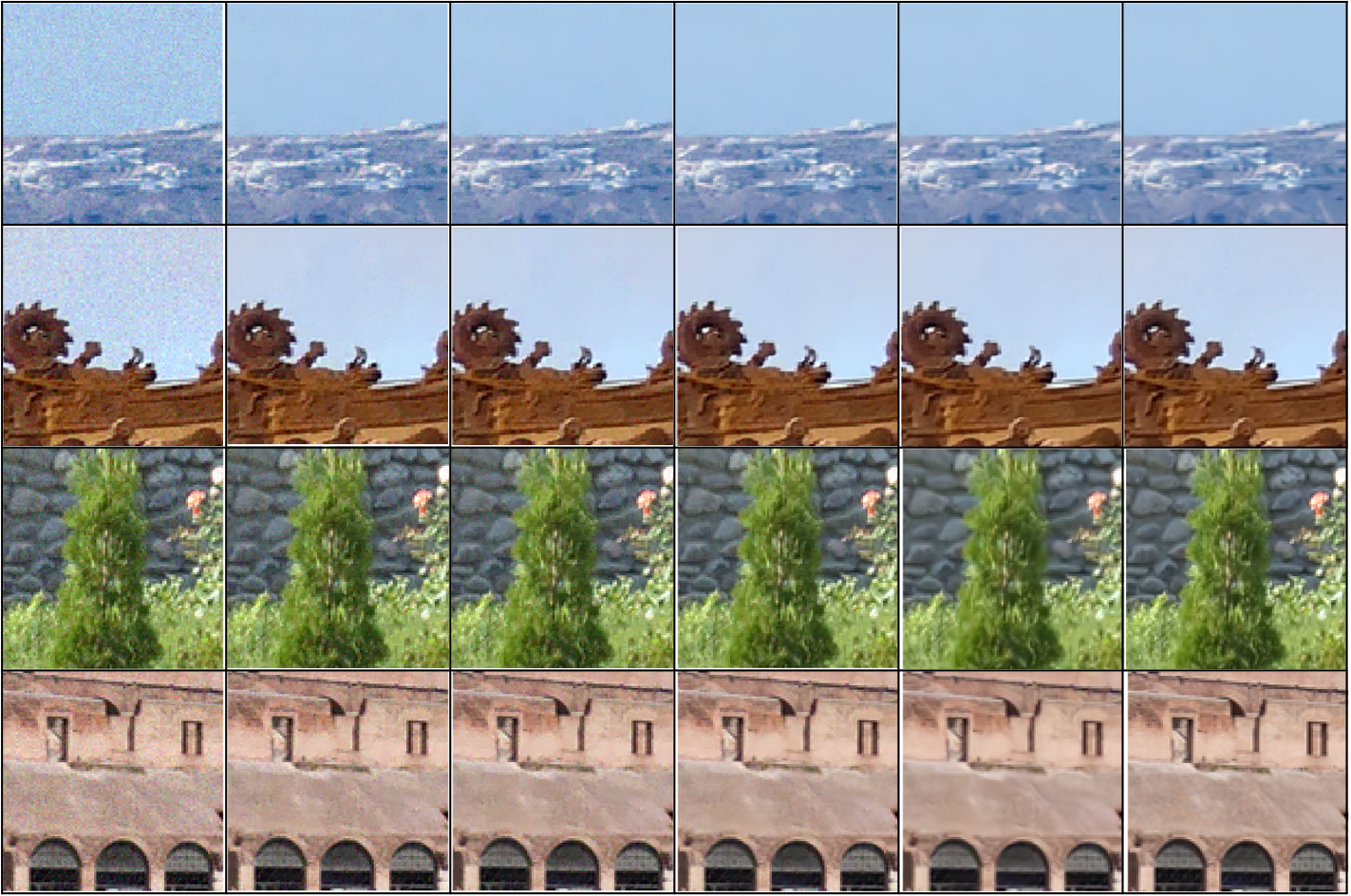

Fig. 6. Comparisons with respect to c in(5). Noise in flat regions does not change when increasing c.
../../Resources/ieie/IEIESPC.2022.11.6.412/fig6.png

3.3 Siamese Architecture for Texture Adaptive Denoising

With the texture map obtained in the previous section, a Siamese network architecture is proposed to maximize the denoising performance by processing flat and texture regions separately. Leaving the texture area as is or assuming the amount of the noise is small is useful when the noise is low. On the other hand, to utilize the proposed solution in a more versatile way, denoising is performed in the YCbCr domain so that the noise in the chrominance components is minimized, and noise in the luminance is controllable as in c used in (5). This is because human vision is more sensitive to luminance than chrominance [25].

Fig. 7 presents the acquisition process of the ground truth noise image in training. Noise is multiplied by the weak-texture map, divided into the texture and flat components, $\boldsymbol{N}_{T}$ and $\boldsymbol{N}_{F}$, and converted to the YCbCr domain to obtain $\boldsymbol{N}_{Tc}$ and $\boldsymbol{N}_{Fc}$. The first channel in the YCbCr image represents the illuminance. The parameter c in Fig. 7 now controls how much the noise in the luminance of the texture area $\boldsymbol{N}_{Tc}$ is removed, while eliminating the noise in the chrominance of all regions. The proposed Siamese network, as depicted in Fig. 8 estimates the noise in the texture and flat areas separately by the designed loss function. The loss function to train is as follows.

(6)
$ \boldsymbol{L}_{Total}=\boldsymbol{L}_{T}+\boldsymbol{L}_{F}\\ \boldsymbol{L}_{T}=~ \left\| \boldsymbol{N}_{Tc}-\hat{\boldsymbol{N}}_{Tc}\right\| ^{2} \\ \boldsymbol{L}_{F}=~ \left\| \boldsymbol{N}_{Fc}-\hat{\boldsymbol{N}}_{Fc}\right\| ^{2} $

After the two outputs from each subnet are obtained, they are combined and converted to the RGB domain to be an estimated noise $\hat{\boldsymbol{N}}$. The denoised image $\hat{\boldsymbol{Y}}$ is then reconstructed by subtracting $\hat{\boldsymbol{N}}$ from the noisy input X. The number of intermediate layers (depicted in blue) in Fig. 8 can be optimized to the strength of the noise, as shown in the next section.

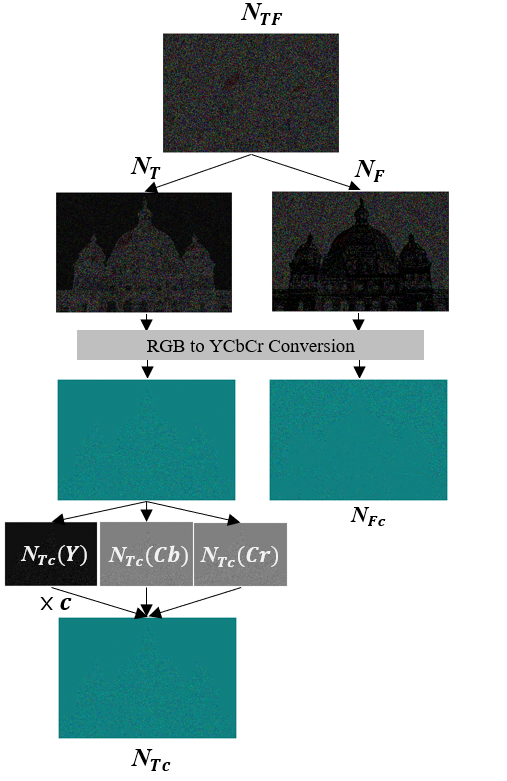

Fig. 7. The acquisition of the ground truth noises in the texture and flat areas.
../../Resources/ieie/IEIESPC.2022.11.6.412/fig7.png

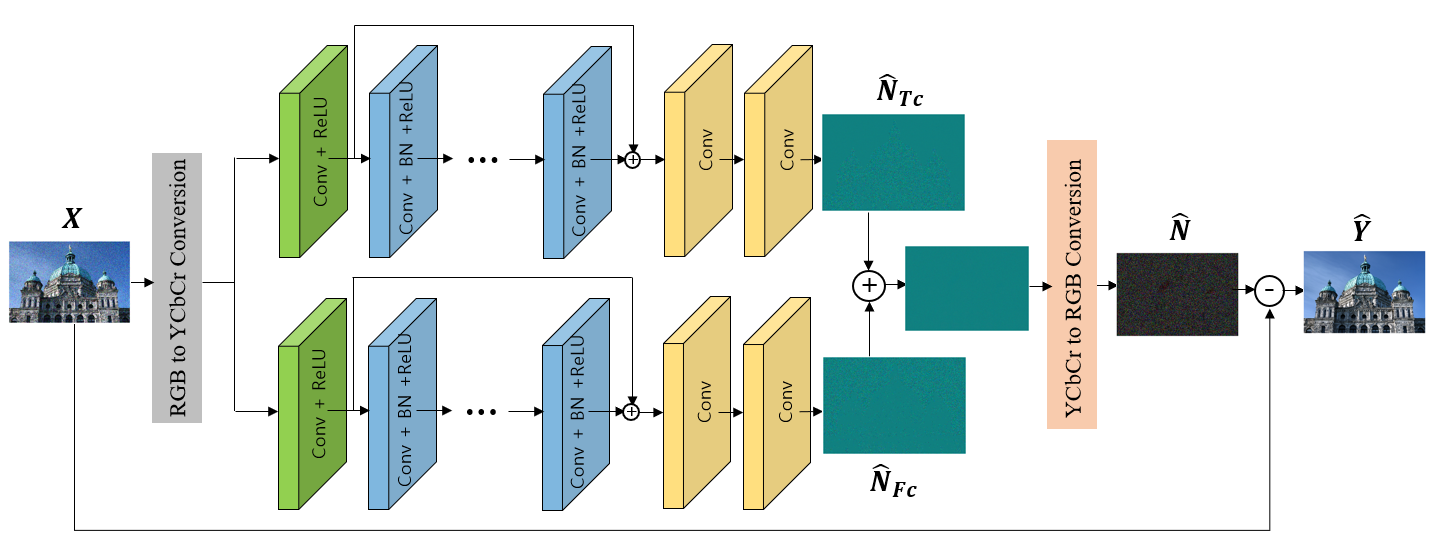

Fig. 8. The proposed Siamese Architecture for texture adaptive denoising.
../../Resources/ieie/IEIESPC.2022.11.6.412/fig8.png

4. Performance Evaluation

Popular evaluation metrics, such as PSNR and SSIM for image quality assessment, are not considered to reflect human visual perception correctly [26]. A more appropriate method is required when evaluating systems based on the criteria that produce noise-free, natural, and visually pleasing images. In the present case, the fidelity of the reconstruction focuses mainly on the high frequency of the signal. The gradient distribution proposed by [26,27] can show how two similar images are distributed on the gradient domain. Therefore, the metric defined as the squared difference in the gradient distribution for an objective comparison is expressed as follows.

(7)
$ GD_{err}=~ \sum _{i=bins}\left\| \boldsymbol{H}_{\boldsymbol{gt}}\left(i\right)-\boldsymbol{H}_{\boldsymbol{est}}\left(i\right)\right\| ^{2} $

where $\boldsymbol{H}_{\boldsymbol{gt}}$ and $\boldsymbol{H}_{\boldsymbol{est}}$ are the gradient histograms of the gray image $\boldsymbol{Y}_{gt}$ and the corresponding estimate $\hat{\boldsymbol{Y}}_{gray}$, respectively. Fig. 9 illustrates the gradient distributions of the proposed method compared to the existing methods for the first cropped image in Fig. 6 on a logarithmic scale. The number of bins in the histogram in Fig. 9 is 100. The resulting images of DnCNN and GradNet [28], shown in green and blue, respectively, show a non-negligible difference in the vicinity of the high gradient compared to the clean. On the other hand, the proposed method with c=0.5, as indicated by the red line, tracks the distribution of the clean image without abrupt decay.

Table 1 lists the experimental results with the Gaussian ${\sigma}$ = 10 and 25 by $GD_{err}$. This study varied the number of intermediate layers; L means the total number of layers, including a variable number of intermediate layers, and c is the parameter for controlling the noise of illuminance in Fig 7. The scores in the parenthesis in the first row of Table 1 are PSNR and SSIM for reference. Existing deep denoising networks perform marginally better than the proposed method on PSNR and SSIM metrics. On the other hand, they have large $GD_{err}$, which means that the gradient distribution of the denoised images differs substantially from that of the original image. Although the variants of the proposed method in Table 1 have a relatively small number of layers, they retain the gradient distribution of the clean image. Therefore, the proposed outputs are perceived as more similar to a clean image.

To scrutinize it, an image was divided into texture and flat regions simply by the average gradient value of each image. The gradient of a pixel greater than the average belongs to the texture region, otherwise the flat region. As expected, $GD_{err}$ in the texture region is substantially greater than that in the flat region. When comparing the results of DnCNN and GradNet with the equivalent backbone structures, the proposed method shows similar denoising performance in the flat but superior texture at ${\sigma}$ = 10 and 25. A large number of layers in the network helps generate good PSNR and SSIM metric scores when the strength of noise is high, but it does not improve $GD_{err}.$ Therefore, the setup proposed in the last column of Table 1 can be a good compromise for conventional quantitative metrics and $GD_{err}.$

Fig. 10 presents the resulting images for visual comparisons. Three popular deep neural net-based methods were evaluated to assess the performance of the proposed method: DnCNN, GradNet, and RedNet30 [29]. The first to third column images in Fig. 10 are the results with ${\sigma}$ = 10, and the fourth to last column images are the results with ${\sigma}$ = 25. The deep neural network-based competitive methods have been observed to remove noise well in large and small noise simulations. On the other hand, they over-smooth texture details and noise without textual information. By contrast, the proposed method adaptively denoises texture and flat areas. The resulting denoised images of the proposed method are smoothed in flat areas and consistently sharp in texture areas. Therefore, the proposed outputs look more realistic and visually appealing. In addition, the proposed method does not require a texture map or other input to denoise regions in the inference further. The ability to distinguish the domains is acquired through the loss function of the learning process. The perceptual difference between the proposed and competing methods is significant when ${\sigma}$ = 25. Unlike the resulting images of the competing methods, which are unnatural and cartoonish, the images from the proposed method appear sharper and maintain naturalness

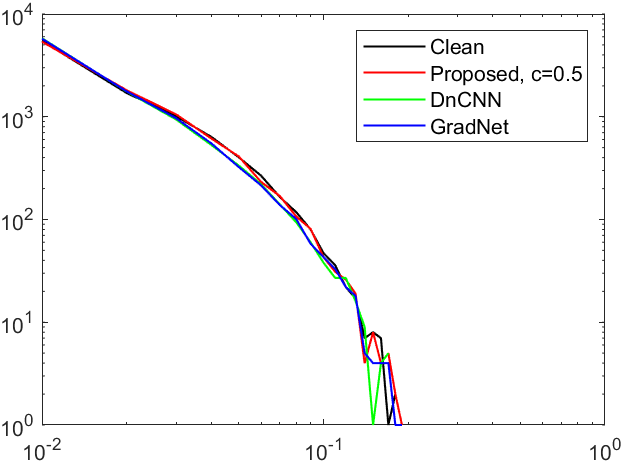

Fig. 9. Gradient distribution of the proposed and existing methods for the first image in Fig. 6.
../../Resources/ieie/IEIESPC.2022.11.6.412/fig9.png

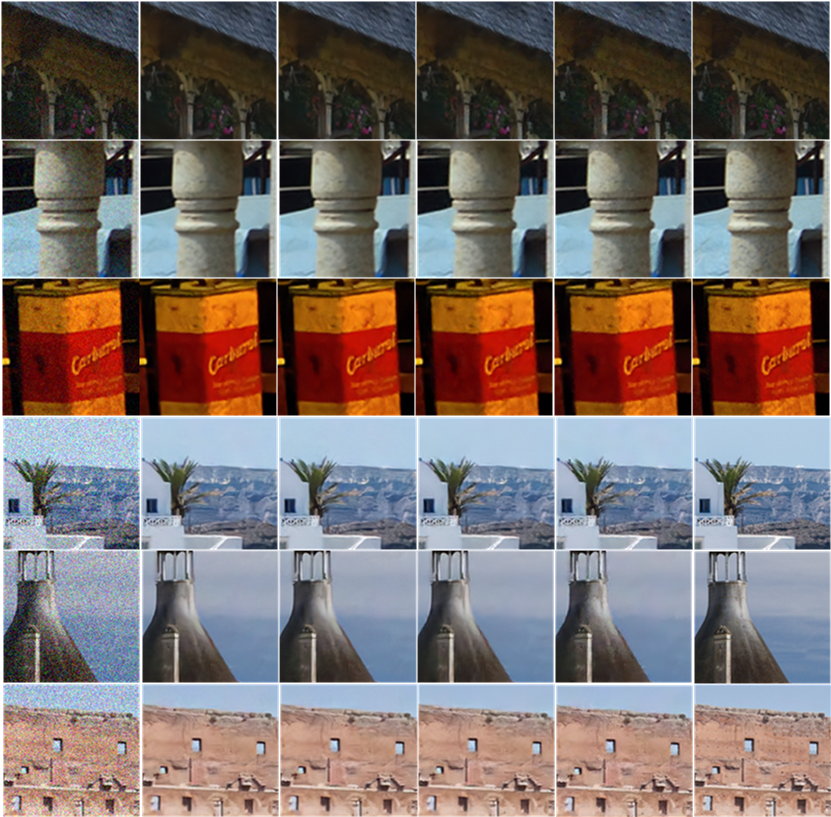

Fig. 10. Image Quality Comparison. First to Third Columns are for ${\upsigma}$ = 10 and Fourth to last columns are for ${\upsigma}$ = 25. It is recommended to enlarge the images for better comparison.
../../Resources/ieie/IEIESPC.2022.11.6.412/fig10.png
Table 1. Evaluation Result by normalized $\boldsymbol{G}\boldsymbol{D}_{\boldsymbol{err}}$($\times \frac{1}{10^{9}}$).

${\sigma}$ = 10

Noisy

DnCNN [16]

GradNet [28]

RedNet30 [29]

Proposed

(3L, c=0.5)

Proposed

(8L, c=0.5)

Proposed

(10L, c=0.5)

All

9.205

(28.36/0.80)

0.498

(37.54/0.98)

0.472

(37.54/0.98)

0.389

(37.04/0.98)

0.235

(34.77/0.96)

0.519

(35.85/0.97)

0.386

(36.330.97)

Texture

1.043

0.241

0.222

0.168

0.113

0.259

0.163

Flat

5.257

0.083

0.083

0.080

0.066

0.084

0.082

${\sigma}$ = 25

Noisy

DnCNN

GradNet

RedNet30

Proposed

(12L, c=0.8)

Proposed

(14L, c=0.8)

Proposed

(17L, c=0.8)

All

18.33

(20.7/0.53)

1.20

(32.88/0.95)

1.15

(32.98/0.95)

1.01

(32.79/0.95)

0.88

(31.96/0.93)

0.88

(32.00/0.94)

0.98

(32.02/0.94)

Texture

2.711

0.818

0.779

0.660

0.567

0.578

0.648

Flat

9.458

0.084

0.084

0.083

0.077

0.074

0.077

5. Conclusion

This paper proposed a method for texture adaptive denoising of an image. Existing DNN-based denoising methods have shown excellent performance in terms of PSNR and SSIM metrics. However, the perception of image quality by human beings is subjective, and there are no universal metrics to evaluate human visual image quality. Overall, they over-smooth and blur the image textures, scoring high on average. In the existing methods, it is not easy to fine-tune the strength of the denoising in their frameworks because only the trained dataset controls the resulting image quality. In the proposed method, however, $GD_{err}$ was utilized to determine how faithfully it recovers the signals in the gradient space. As a result, the proposed method further maintains the gradient distribution in the texture corresponding to the high-frequency component of an original signal. A single parameter c in the proposed method determines how much noise is removed from the noisy luminance of texture areas, a novel feature existing DNN-based methods cannot have. No additional resources are required because the training process achieves the above-mentioned benefits through the designed loss function
